Wires that prevent the spread of fire.
Wires that protect you.

Electrical fires are the most common fires today, but it is the spread of the fire that adds to the danger. Norwoods Flame Retardant (FR) grade wires will add a layer of protection to your life. These wires have a temperature index of greater than 250 ºC ensuring that in the case of high temperatures the wires do not melt. In addition, the high oxygen index of 31% present in these wires ensures that in case these wires do catch fire they are self-extinguishable and thus prevent the spread of fire.

Applications

Wiring in all installations where fire safety is more important. Schools, theaters, commercial complexes, air conditioned apartments, high rise buildings, fire alarms and emergency lighting circuits.

Specifications

Generally conforms to, IEC 60332-1 & 3, IEEE 383, IEC 60754-1 & 2, IS-8130, IS-694, IS-5831.

Conductor

Thin strands of Electrolytic Copper are multi–drawn simultaneously for uniformity of Resistance, Dimension, and Flexibility. The drawn strands are bunched in high precision machines. A circular conductor is thus formed. The conductor is bunched in such a way that it reduces in overall diameter for space saving in high density wiring.

Insulation

Specially formulated grade of Flame Retardant (FR) compound is used. The performance of the cable in a fire situation is exceptionally good. The insulation does not burn readily. It does not melt and drip. The smoke is negligible, transparent, non toxic. The victims trapped in fire do not suffocate and this facilitates fire fighting operations. Unlike general purpose PVC, the smoke emitted is non-corrosive. Thus, the electronic printed circuit boards, hard disks and other sensitive electronic equipments are unaffected.

Marking

The cables are marked “Norwood Wires & Cables -FR (Size)1100V IS:694 CM/L NO-8512875”.

Colours

Red, Yellow, Blue, Black, Green.

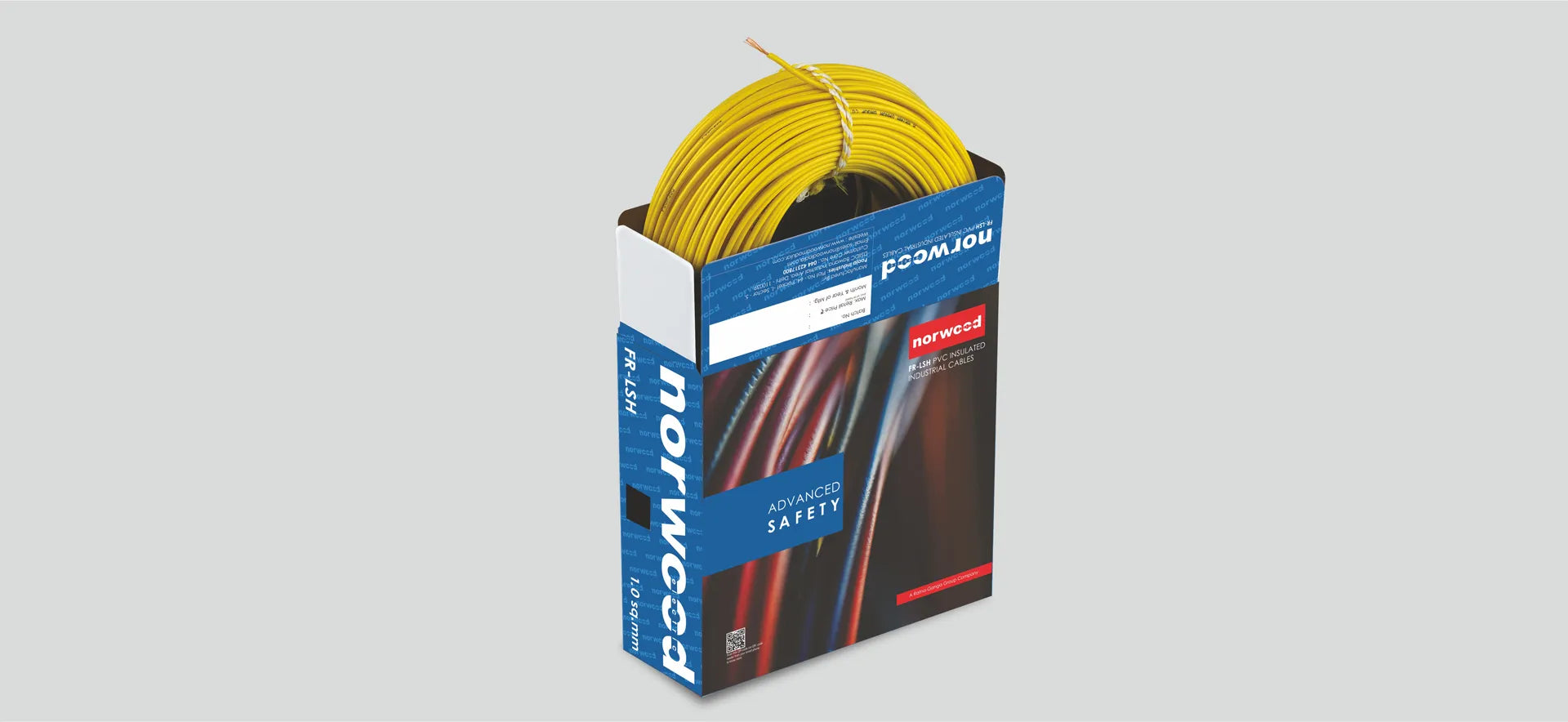

More Smart. Less smoke.
Norwoods FR Low Smoke (FRLS) wires cause very little smoke in case of a fire

Smoke during a fire prevents visibility making it harder for rescuers to do their job. Smoke also produces harmful gasses that when inhaled causes very serious health issues. In case of a fire, the FRLS wires cause very little smoke allowing for high visibility for firefighters to navigate and low chances of inhaling harmful gases. These wires are essential to help protect your world.

Applications

Wiring in all installations where fire safety is more important. Schools, theaters, commercial complexes, air conditioned apartments, high rise buildings, fire alarms and emergency lighting circuits.

Specifications

Generally, conforms to, IS: 694, IEC: 60332-1, IEC: 60754-1 IS: 8130 & IS: 5831.

Conductor

Many thin strands of Electrolytic Copper are fine–drawn simultaneously for uniformity of Resistance, Dimension and Flexibility. The drawn strands are twisted in high precision machines and compacted. This not only imparts circularity to the bunched conductor but also prevents the tendency of the strands to separate when pressure is exerted on the insulation while the cable is bent during installation and usage.

Insulation

Specially formulated high temperature grade of Flame Retardant Low Smoke compound restricts the spread of ames in a fire situation. FRLS Cables produce very less smoke during burning as compared to general purpose cables. This ensures improved visibility for evacuation of trapped victims and facilitates fire-fighting operations.

Marking

The cables are marked “Norwood Wires & Cables -FR-LSH (Size)1100V IS:694 CM/L NO-8512875”.

Colours

Double strips of Silver Grey or bright orange on base colour Red, Yellow, Blue, Black, and Green running along the length of the cable.

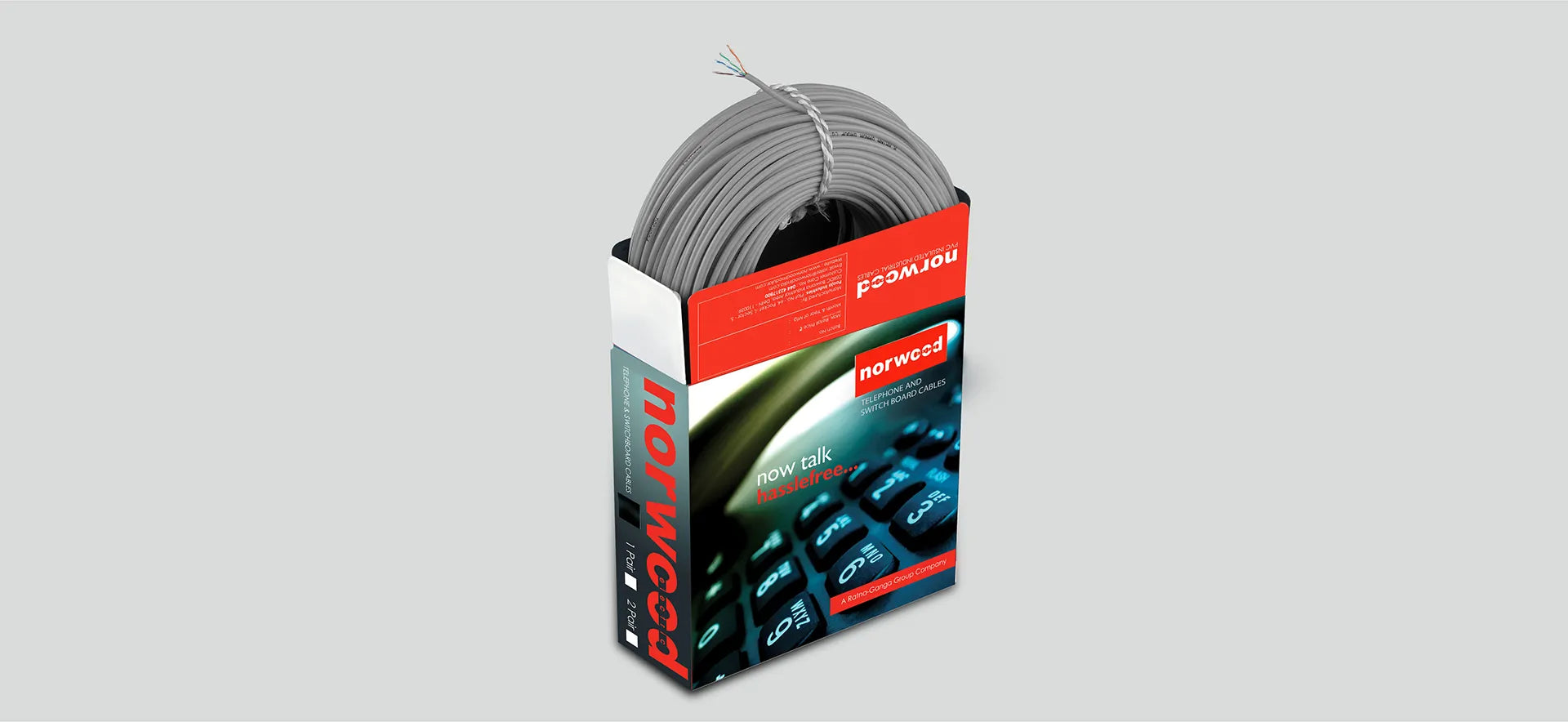

Stay connected

Applications

Recommended for switchboard and internal telephone wiring in high rise buildings, offices, factories, hotels, residential complexes, transmission of analog and digital signals, internal wiring in faxes, modems, computers, alarm enunciators, data recording / acquisition systems and various communication devices.

Specifications

ITD-S/WS 113C & 114C, DOT GR / WIR 06/02 MAY 94, ITI D 3005 & D2712.

Conductor

The central conductor is made of 99.97% pure solid electrolytic grade copper

Insulation

Premium quality grade polyethylene used for insulation with several online testing equipments.

Twisted Pairs

The cores are carefully twisted with suitable lays and laid up together to form cable. Special attention given to this stage for minimising cross talk.

Ripcord

A nylon rip cord is provided in order to safely peel off the jacket without damaging the cores

Sheath

The laid up pairs are jacketed with special Flame Retardant (FR) compound to resist ame.

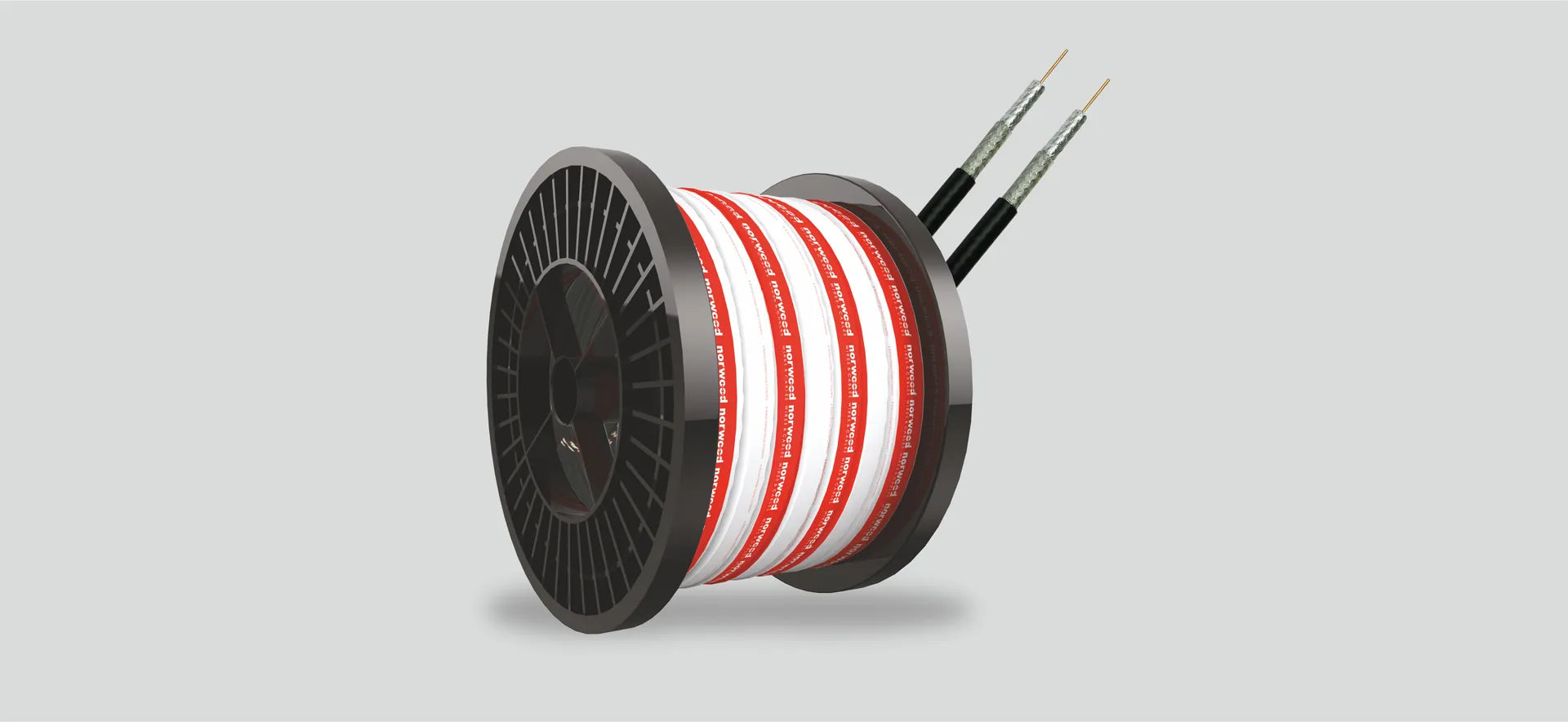

Optimize your entertainment

Don’t you hate it when all you want to do at the end of a hard day is wind down with your favourite tv show or movie, but the quality of picture is worse than your day at work?? With Norwoods Jelly flooded Co-Axial cables you’ll never have to compromise on the quality of entertainment ever again. Using 99.97% copper, the Jelly flooded coaxial cables ensures better signal transmission, low electromagnetic interference, and higher bandwidth for hundreds of channels.

- High quality Co-axial cable for Cable TV network.
- Notch free attenuation values over wide band of frequencies
- The special jacketing offers increased life even in rugged conditions.

Specifications

Generally conforms to, IEC 60332-1 & 3, IEEE 383, IEC 60754-1 & 2, IS-8130, IS-694, IS-5831.

Conductor

The central conductor is made of 99.97% pure solid electrolytic grade conductor, which has distinct advantages over traditional copper conductor.

Insulation

The insulation provided over the conductor is of foam PE which acts as a dielectric.

Screen

Aluminum Mylar tape is provided over the insulated conductor to shield the conductor and ensure disturbance free transmission of signals.

Braiding

The braiding provided is > 60% coverage of ATC (Annealed Tinned Copper) /Aluminium braiding.

Rugged cables for flawless and constant power transmission

The Submersible cables are usually installed in conditions that are considered less than optimum. That’s why the three copper conductors inside are insulated with a special PVC compound. The outer sheath is made from a special grade of abrasion resistant PVC compound that is resistant to water, oil, petrol, most acids, alkalis and grease. With Norwood ubmersible cables, you are assured of optimum performance irrespective of the conditions.

Powering the World

This connecting cable is used for trouble-free working of submersible pump motors. Norwood 3 Core Flat Cables are manufactured keeping in mind the severe and difficult conditions in which they are required to perform. The individual conductors are made of bright electrolytic grade copper. These wires are drawn, annealed and bunched properly to ensure flexibility and uniform resistance. Each of the 3 copper conductors is insulated with special PVC Compound. The cores are laid up in flat parallel position. The outer sheath of the cable is made from a special grade of abrasion resistance PVC Compound impervious to water, grease, oil etc.

Submersible 3 Core Flat

Norwood flat cables provide energy to submersible pump motors. The individual conductors are made of bright electrolytic grade copper. The cores are insulated with a high dielectric grade PVC compound. The outer sheath is made of a special grade of abrasion-resistant PVC compound impervious to water, grease, oil, etc.

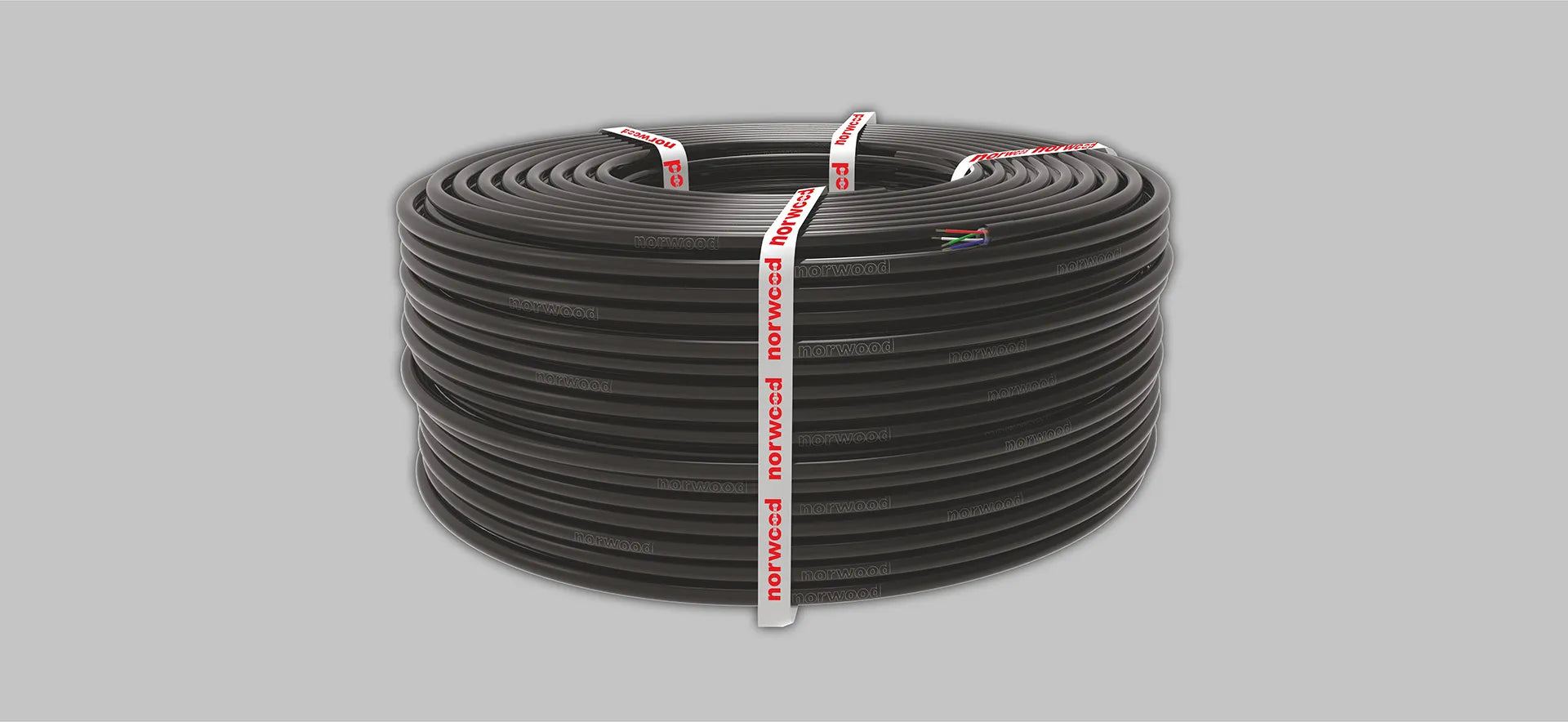

Invariable power at all times

While single core cables are widely used for domestic purposes, multicore cables are used in areas where space might be a constraint (medical equipment, aircraft) or in entertainment venues, theaters, heavy industries, etc. The single as well as multi core cables from Norwood are durable and heat resistant. They do not melt or burn easily even in extreme conditions.

Features

Manufactured from bright annealed 99.97% pure bare copper conductors these cables offer low conductor resistance. These wires are insulated with in house manufactured specially formulated PVC compound. The tough robust outer PVC jacket protects it from oils, greases, various chemicals and abrasions giving the wire a long life and ensuring electrical safety.

Applications

Multicore Cables are very versatile and can be used in control panels for heavy industries, heavy machineries, air-condition, motors etc.

Conductor

Electrolytic Grade Copper Conductor as per IS: 8130 – 1984 Flexibility Class 2 and 5

Insulation

PVC Type A of IS: 5831 – 1984 for maximum conductor temperature 70°C
PVC Type C of IS: 5831-1984 for maximum conductor temperature 85°C

Thickness of Insulation : Nominal thickness as per relevant specification is tabulated.
Tolerance on Thickness of Insulation : The smallest of the measured values of thickness of insulation shall not fall below the nominal value specified in the relevant tables by more that (0.1 mm + 0.1 t1).
Where t1 = Nominal Thickness of Insulation in mm.

Colour of Insulation

Two Core Cable Red & Black
Three Core Cable Red, Black & Green
Three Core Cable Red, Black & Green
Five Core Cable Red, Yellow, Blue, Black & Grey
Six Core and above Two adjacent Cores in each layer Blue and Yellow remaining cores Grey

Laying-Up

The cores are laid up with a suitable right hand lay.

Outer Sheath

PVC Type ST-1 of IS: 5831-1984 for maximum conductor temperature 70°C.
PVC Type ST-2 of IS: 5831-1984 for maximum conductor temperature 85°C.

Application

The laid up cores shall be provided with outer sheath applied by Extrusion.

Thickness of Outer Sheath

The average thickness of outer sheath of Unarmoured cables shall not be less than the nominal value specified. The smallest of the measured values shall not be less than 0.2 mm + 0.2 t1. (ts is nominal thickness of sheath)

Colour of Outer Sheath

Colour of outer sheath shall be black. Colour other than black may be used as agreed to between the purchaser and the supplier.

Build a powerful network. Information is key

CAT 5E

Norwood LAN Cables are high performance cables best suited to your specific Applications. Transmission performance of these Cables are verified for its category 5E requirements of TIA/EIA 568 — B-2.1

Uses

Norwood Lan cables are suitable for use in modern computer network systems, voice, video and data transfer and for all Lan topologies.

Conductor

Solid annealed bare copper (electrolytic grade) Nominal conductor diameter 0.5 mm

Insulation

High speed high density polyethylene(HDPE)

Insulation Colour Pair

Pair-1 White-Blue, Pair-2White-Orange, Pair-3White-Green, Pair-4White-Brown

Outer Jacket

Two insulated conductor twisted together with suitable lay to form a pair. Flame retardant (high oxygen and temperature index) PVC jacket with colour Gray. A nylon rip cord provided below jacket for easy striping of jacket without damaging cable core.

The key to all your security needs

Through the convergence of Security and I.P. camera systems and card access are now under direction of the corporate IT Department. There is a tremendous demand currently in the video recording world. Digital Video Recording has taken place of old analog tape systems. End users now can designate space on their network and store footage digitally. This technology upgrade is comparable to how compact disks have led to the demise of cassette players. Remote access is now a standard offering, which requires the assignment of an IP address to your network.

The Closed Circuit TV / Video Surveillance business is the fastest growing part of our portfolio of products. Though the convergence of Security and I.P. camera systems and card access are now under direction of the corporate IT Department.

Eliminates the time and effort designated for changing tapes
Allows quick playback with enhanced viewing clarity
Enables easy remote access from multiple designated PC’s
Offers simplified storage on your network.
